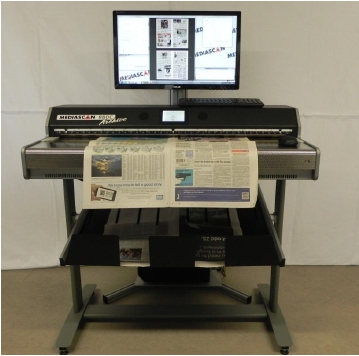

The First Archive Duplex Newspaper Scanning Solutionimplemented on a Single Machine

  • Duplex in a Single Machine
  • Designed for Newspaper
  • Archive Quality
  • Enhanced Paperguide with Iron Effect

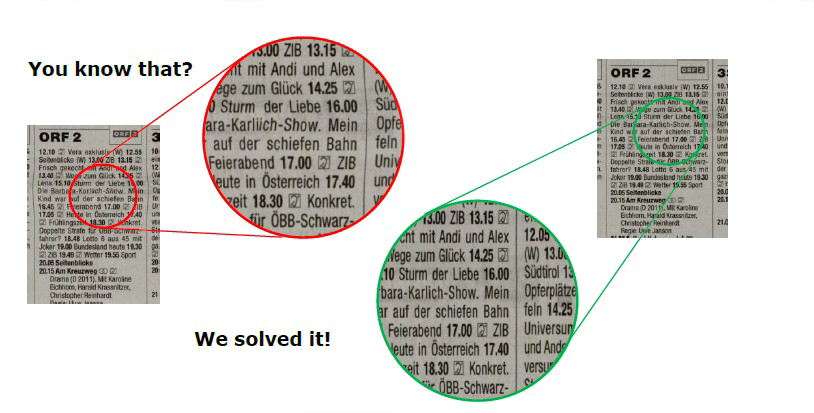

  • Stitch Problem Elimination

  • LED Light Source
  • State of the Art
  • Designed for Production
  • Highly Reliable
  • Professional Results
  • Newspaper Savvy Software





SUPAG’s advanced archive quality duplex system with active paper guide and CCD technology allows you best quality scans on newspaper sheet scanners. The intelligent SMI newspaper software and the PageServer image processor optimize the result to your needs. The software controlled paper handler transports the scanned papersheets carefully into the paper tray for easy handling.








Specifications:

Scanning speed: 880 pages per hour (p/h) @ 300dpi in color or grayscale are estimated but based on SUPAG Media Scan's experience and testing with a mixture of different newspaper sizes and types in a simulated production environment.
Scan size: width: 210 - 890mm (8,3” - 35”), length: 210 – 650mm (8,3” – 25,6”)
Resolution: 200 – 300 dpi (Standard 300 dpi)
File format: JPEG, JPEG 2000, TIFF (JPEG, LZW, Pack Bits uncompressed), BMP, PDF (image only)
Scanner control: Win7 quad core® (PC not included) with SMI software (full options)
Monitor stand: MTFT monitor stand with VESA MIS, weight: 10Kg /22 lbs
Work tables: 2 Roller-mount tables (W x D x H) 86 x 71 x 90cm (33,8” x 21,2” x 35,5”) 22Kg /48 lbs
Scanner dimension: (W x D x H) 110 x 80 x 107cm (43,3” x 31,5” x 42,1”) 90Kg / 198 lbs
