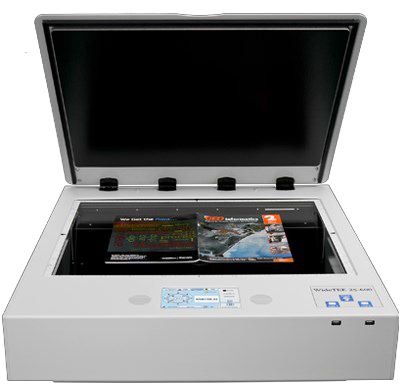

The WideTEK® 25 can scan just about anything: from business cards to A2 sized diagrams, art, books, newspapers, maps, construction drawings, bound documents and much more. Its compact size and integrated walk up scanning software make it the ideal solution for reprographics, copy services, press clipping services as well as in universities, libraries, AEC and government offices. It is small enough to fit on any desktop.




Highlights

  • Fits on any desktop: 30 inch width, only 5 inches more than the scanning area.
  • LED lamps, no warm up, IR/UV free
  • Large color WVGA touchscreen for simple operation
  • Integrated walk up scanning software
  • Two USB ports and Scan2USB functionality
  • Automatic crop & deskew, on the fly rotation of images
  • Real time display & modification of images without rescanning
  • Easy installation via Scan2Net® technology
    •




    Technical Specifications:

    Scanner Optics: CCD camera, scans in color, grayscale, B&W
    Resolution: 1200 x 600 dpi optical 1200 x 1200 scan resolution
    Document Size: 635 x 470 mm, 18.5 x 25 inches
    Fastest Speed: 300 dpi/full bed <3 sec
    Color Depth: 36 bit color, 12 bit grayscale
    Scan Output: 24 bit color, 8 bit grayscale, bitonal, enhanced halftone
    Output Formats: PDF, PDF/A, JPEG, PNM, TIFF uncompressed, TIFF G4 (CCITT)
    Dimensions: 222 x 760 x 795 mm, 8.8 x 30 x 31.3 inches
    Weight: ~44 kg (97 lbs.)
    Power Consumption: <=0.5 W (Sleep) / 2.5 W (Standby)/55 W (Ready to scan) / 90 W (Scanning)
