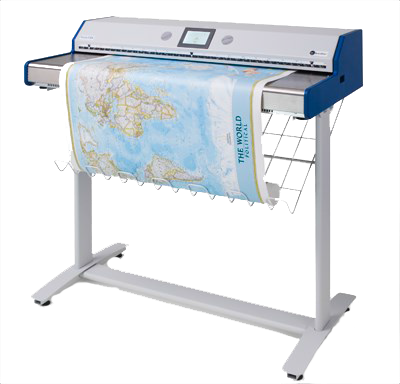

WideTEK® 36 scans documents up to 36 inches wide (915mm). State of the art illumination using bright white LEDs guarantees long lifetime and allow cost of ownership, since there are practically no consumables necessary over the life of the product. Cutting edge camera technology and a dust-protected, fully sealed camera box holding CCD systems which use a patented stitching procedure, delivers a resolution of up to 1200 dpi optical.

Highlights

  • Scans 36 inch widths, feeds 38 inch widths, nearly unlim- ited lengths
  • Fastest color scanning, 12.4 inches per second
  • 1200 x 600 dpi optical
  • LED lamps, no warm up, IR/UV free
  • Face up scanning, integrated walk up scanning software
  • Large touchscreen for simplified operation
  • Automatic crop & deskew
  • Real time display & modification of images without rescanning
  • Dust-free camera technology
  • Easy installation via Scan2Net® technology
    •


    Technical Specifications:

    Scanner Optics: CCD camera, scans in color, grayscale, B&W
    Resolution: 1200 x 600 dpi optical resolution 1200 x 1200 scan resolution
    Document Size: 965 mm, 38 inch width, nearly unlimited length
    Fastest Speed: 200 dpi - 18.9 m/min (12.4 inch/sec)<3 sec
    Color Depth: 36 bit color, 12 bit grayscale
    Scan Output: 24 bit color, 8 bit grayscale, bitonal, enhanced halftone
    Output Formats: PDF, PDF/A, JPEG, PNM, TIFF uncompressed, TIFF G4 (CCITT)
    Dimensions: 220 x 1094 x 555 mm, 9 x 43 x 22 inches
    Weight: ~46 kg (101 lbs.)
    Power Consumption: <=0.1 W (Sleep) / 4 W (Standby) / 60 W (Ready to scan) / 110 W (Scanning)
